Why PCIe Unlocks a New Level of High-Fidelity Playback – and How It Differs from USB?

Most audio systems today use USB. It’s convenient, but USB was never designed for Hi-End, uncompromising sound. USB works by sending packets of data across a shared bus. If something is delayed or lost, the system resends it — fine for printers or hard drives, but not ideal for real-time music. Those retransmissions and buffering add timing errors, noise, and jitter that blur fine musical detail.

PCIe (Peripheral Component Interconnect Express) is different. Instead of moving audio as packets that can be delayed or resent, PCIe establishes a direct, point-to-point connection between the music source and processor. The data path is deterministic, with no allowance for loss or retransmission. That means the timing and integrity of the music signal are preserved from start to finish.

For the listener, this translates into:

·       Cleaner detail

·       More precise timing

·       Deeper, wider soundstage

·       Music that feels alive

Think of it as the difference between mailing your music in envelopes that sometimes get delayed or even lost (USB) versus hand-delivering it on a private lane (PCIe). Both get there, but only one preserves the message exactly as it was sent.

For the move tech-savvy audiophiles, here is a deep dive into the two data transfer protocols:

USB

• Packetized transfer: Data is transmitted in packets over a shared bus. If a packet is lost or delayed, the protocol allows for retransmission. This is acceptable for storage and peripherals but introduces variable latency (buffering and retries) in audio streaming.

• Non-deterministic timing: Because USB relies on host scheduling, data arrival is subject to jitter and latency fluctuations.

• Shared bus: Multiple devices contend for bandwidth, adding further uncertainty in timing.

PCIe

• Point-to-point lanes: PCIe uses dedicated serial lanes between endpoints and the CPU/memory, with no shared bus contention.

• Deterministic delivery: The protocol guarantees in-order, lossless data transfer with microsecond-level latency. There is no concept of retransmission at the application layer, which makes it inherently better suited for real-time tasks like audio streaming.

• High bandwidth headroom: Even a PCIe Gen3 x1 lane provides 8 GT/s — overkill for audio, ensuring massive overhead and stability.

Audiophile Impact

USB’s packet retries and scheduling jitter require DAC-side re-clocking to mitigate timing errors, but they can never be fully eliminated. PCIe, by contrast, offers a direct, lossless, jitter-minimized path, allowing the DAC to operate with maximum precision and delivering audible improvements in imaging, micro-dynamics, and realism.

This is why a PCIe-based player like the Cen.Grand GLD1.0 sounds more natural with improved imaging and micro-dynamics that convey the emotion of the music.

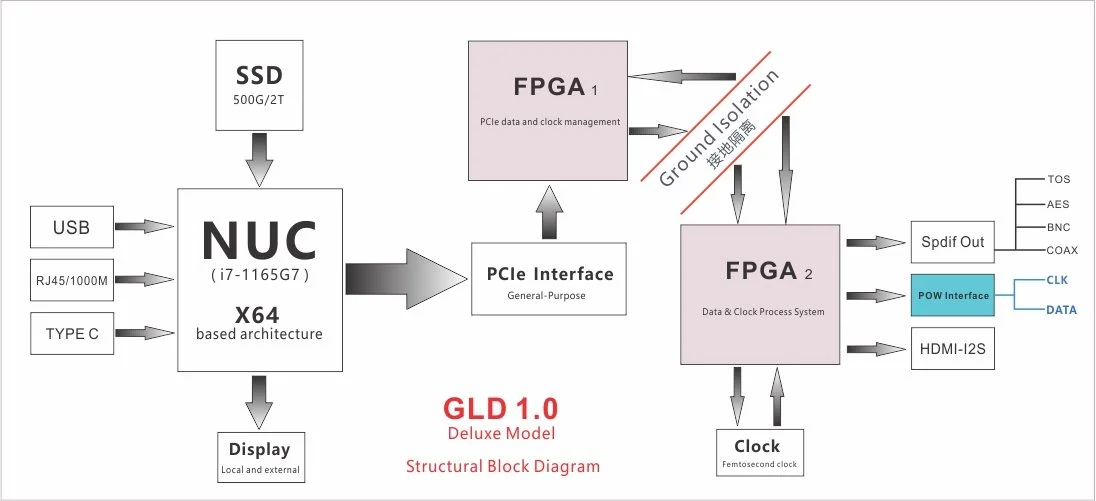

PCIe-based POW Interface on the Cen.Grand GLD1.0 Media Player

A custom-made PCIe Device inside the GLD1.0

Connection between the GLD1.0 (bottom) and the DSDAC1.0 (top). Image courtesy of 6Moons.
