Analog Sound™ by Line Magnetic AS-335 Integrated Amplifier

from $8,800.00

The Analog Sound AS-335 is the first 300B integrated amplifier in Line Magnetic's flagship Analog Sound series, created as a tribute to Western Electric by a design team whose roots lie in restoring and replicating WE's legendary equipment. At its heart are eight replica Western Electric transformers, including the WE 171A output transformers of the famed 1936 WE 91A, WE 618B input transformers, a WE 359M power transformer and three WE filter chokes, alongside a 5Z4 valve rectifier and custom 300B output valves driven by 12AX7 and 6SN7 stages.

Unlike most 300B designs, the AS-335 includes a true preamplifier stage, and a front-panel switch lets you choose between direct bypass and the 618B input transformers for greater scale and authority. The result is single-ended 300B magic with a modern sensibility: dense, lifelike midrange, generous bass weight, uncompressed dynamics and a wide, deep soundstage, with enough drive to bring even modest-sensitivity bookshelf speakers to life.

Made to Australian standard of 240V~. Australian local warranty.

Local Stock: Items available in our warehouse for immediate dispatch.
Factory Direct Shipping (Indent): Items shipped directly from the manufacturer. Lead times may apply. Enquire lead time.‍

Stock Option:

The Analog Sound AS-335 is the first 300B integrated amplifier in Line Magnetic's flagship Analog Sound series, created as a tribute to Western Electric by a design team whose roots lie in restoring and replicating WE's legendary equipment. At its heart are eight replica Western Electric transformers, including the WE 171A output transformers of the famed 1936 WE 91A, WE 618B input transformers, a WE 359M power transformer and three WE filter chokes, alongside a 5Z4 valve rectifier and custom 300B output valves driven by 12AX7 and 6SN7 stages.

Unlike most 300B designs, the AS-335 includes a true preamplifier stage, and a front-panel switch lets you choose between direct bypass and the 618B input transformers for greater scale and authority. The result is single-ended 300B magic with a modern sensibility: dense, lifelike midrange, generous bass weight, uncompressed dynamics and a wide, deep soundstage, with enough drive to bring even modest-sensitivity bookshelf speakers to life.

Made to Australian standard of 240V~. Australian local warranty.

Local Stock: Items available in our warehouse for immediate dispatch.
Factory Direct Shipping (Indent): Items shipped directly from the manufacturer. Lead times may apply. Enquire lead time.‍

Main Features

All hand-made with the finest ‘point-to-point’ wiring

A real built-in pre-amplification stage, not just a volume control like on many other integrated amps on the market

Eight transformers: Legendary Western Electric Replica Model 618B input transformers for pre-amp stage, and Western Electric Replica model 171A output transformers for output stage， WE359M power transformer, WE221G & WE179A filter chokes,

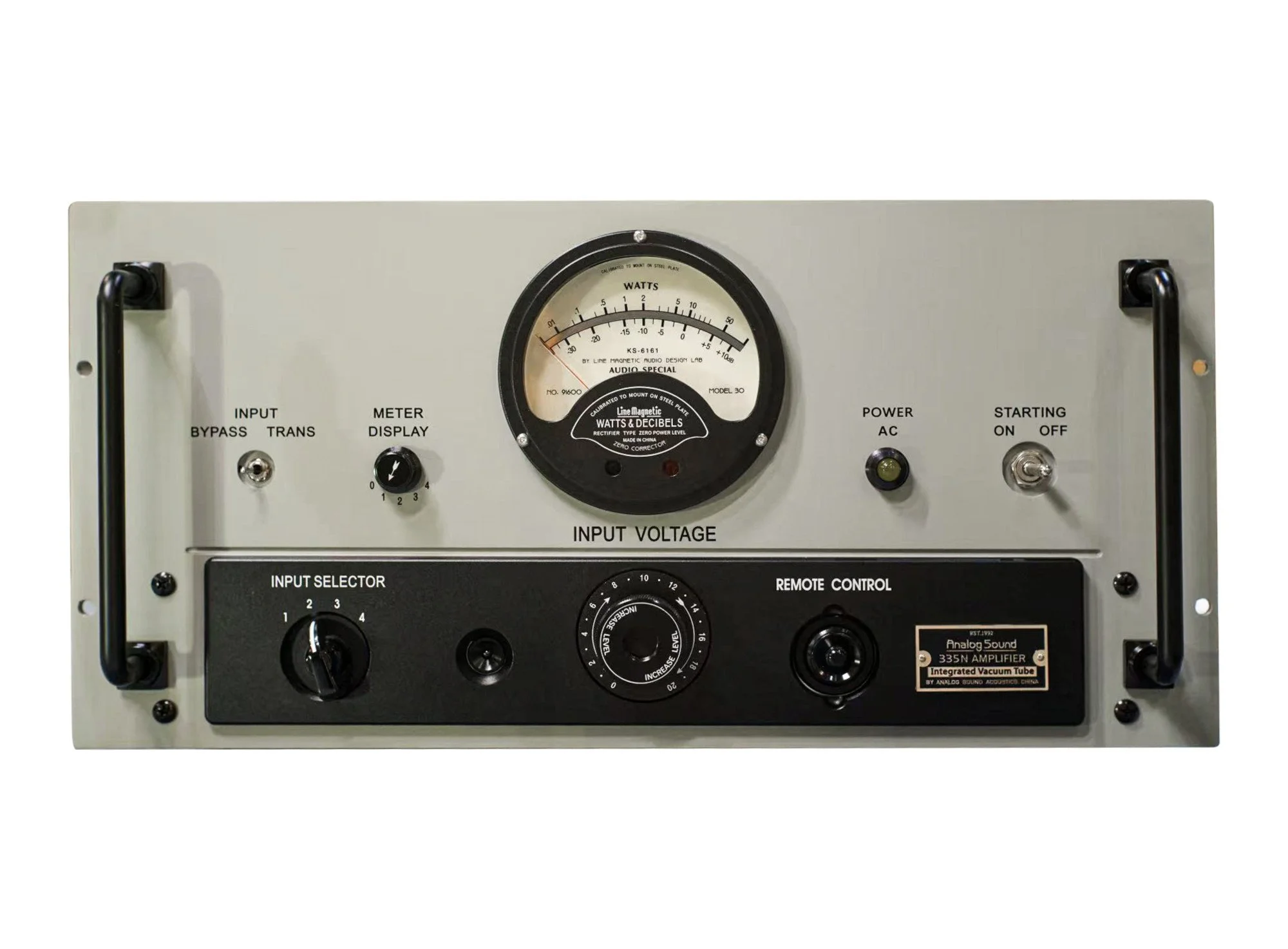

Front panel bypass switch for input transformer: This switch allows you to choose whether the signal passes through the input transformer. In the "Trans" position, where the signal goes through the transformer, the sound stage’s mid and low frequencies are broadened, delivering a warmer, more “tube-like” sound. In the "bypass" position, where the transformer is bypassed, the amplifier delivers faster response, greater impact, and a wider sound stage, particularly enhancing the experience of large-scale symphonic music.

Front VU meter can be turn on/off

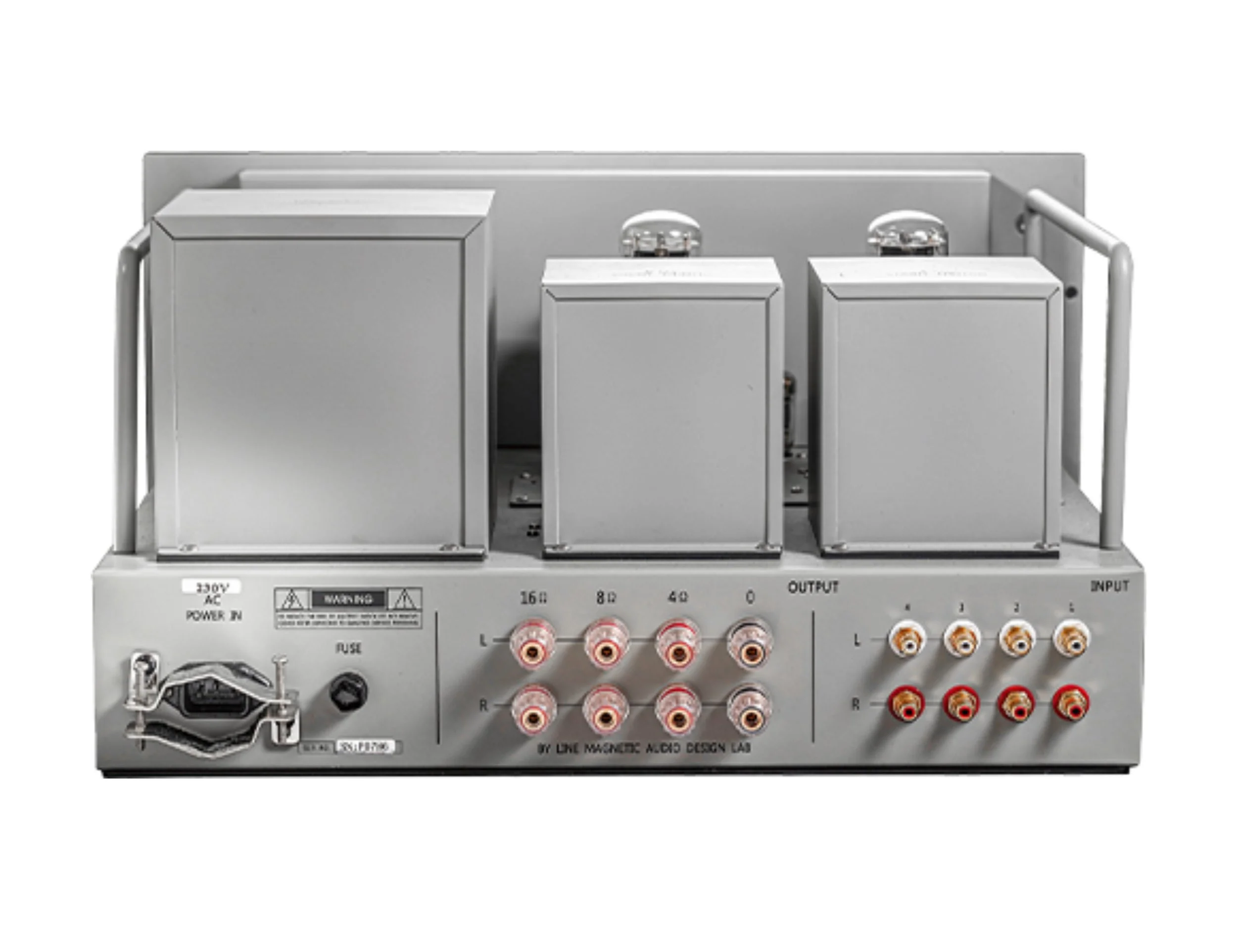

4 pairs RCA inputs, with 4, 8 and 16 ohm speaker terminals

Tubes: 2 x 12AX7, 2 x 6SN7, 2 × 300B, 1 x 5Z4/ 5Y3

Specification

Input Impedance: 100kΩ/600Ω

Output Impedance: 4Ω, 8Ω,16Ω

Sensitivity: 250mV

Output Power: 7W + 7W (RMS)

Signal to Noise Ratio: 87dB

Frequency Response: 20Hz to 30kHz +/-2dB

THD:  1%

Dimension (W x H x D): 480mm × 255mm ×470mm

Weight: 37kg

Voltage: 240V~

Colour: Grey
